Item name

Truck mounted crane

Dimension

9000x2500x3850 mm

Total weight

18000 kg

Curb weight

11500 kg

Loading capacity

6500 kg

Wheelbase

5700 mm

Chassis brand

ISUZU FTR

Tire specification

10.00R20

Number of tires

6

Fuel type

Diesel

Engine model

4HK1-TCG60

Engine displacement

5190 cc

Engine power

151 kw/ 205 hp

Engine rate speed

2600 rpm

Engine max torque / speed

647 N.m at 1200-1700 rpm

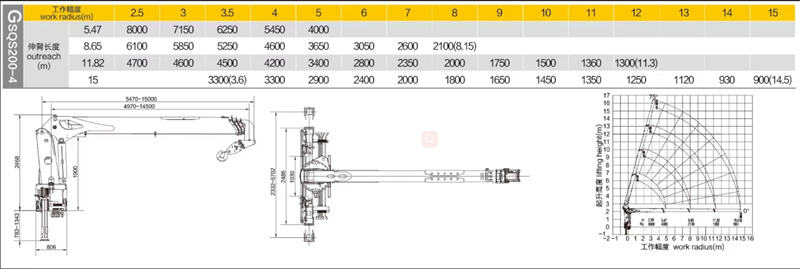

Crane model

SQS200

Max lifting moment

200 kn.m

Max lifting capacity

8000 kg

Max outreach

15 m

Max lifting height

16.7 m

Rated flow of hydraulic system

63 L/min

Oil tank capacity

200 L

Rate pressure of hydraulic system

26  Mpa

Recommend power

30 kw

Install space

860 mm

Slewing Angle

360°

Crane weight

3350 kg

Bomm section

Hexagon
