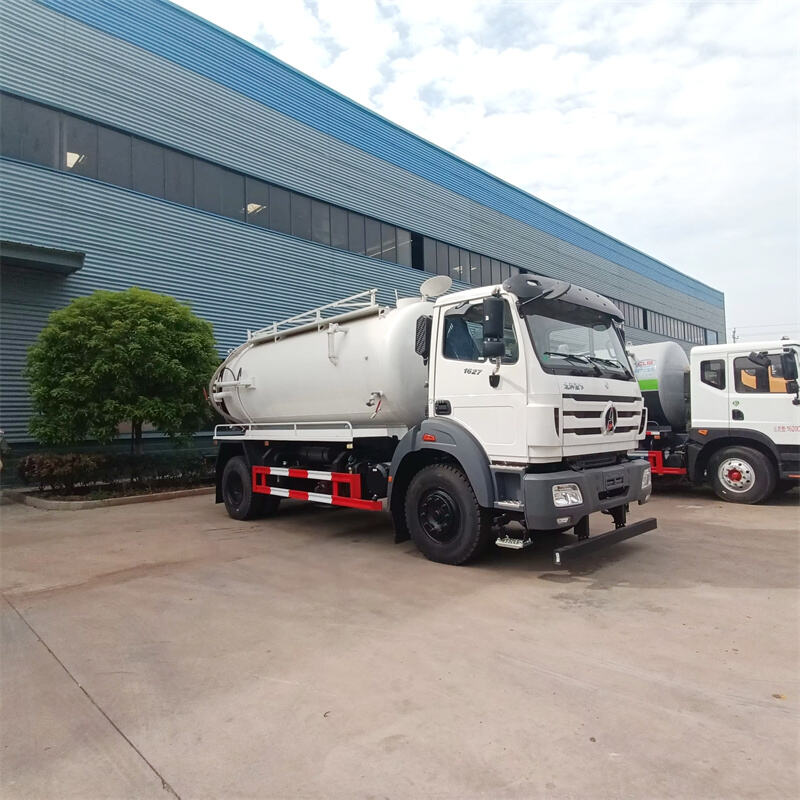

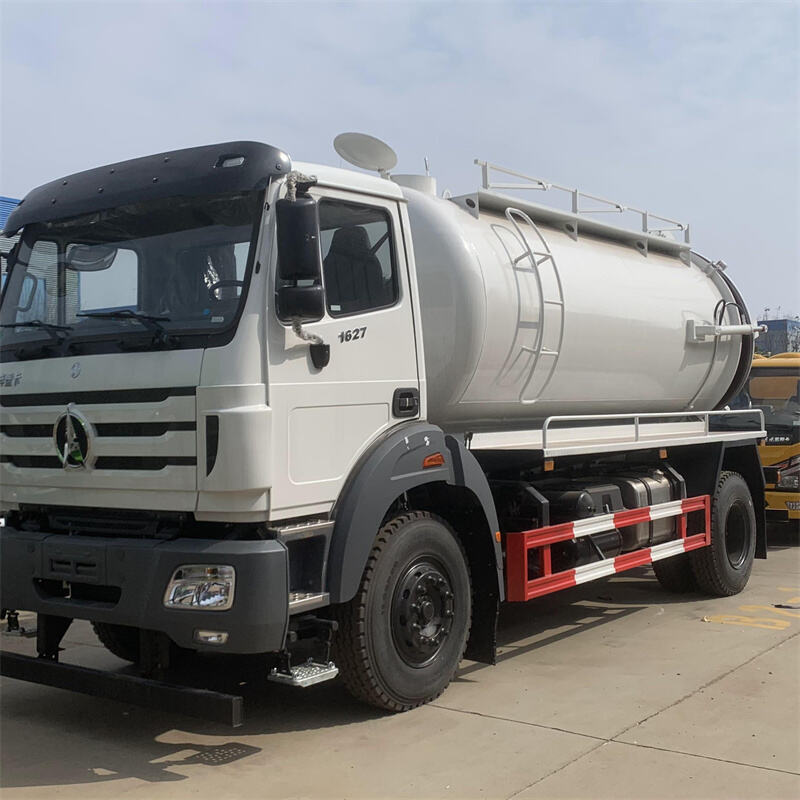

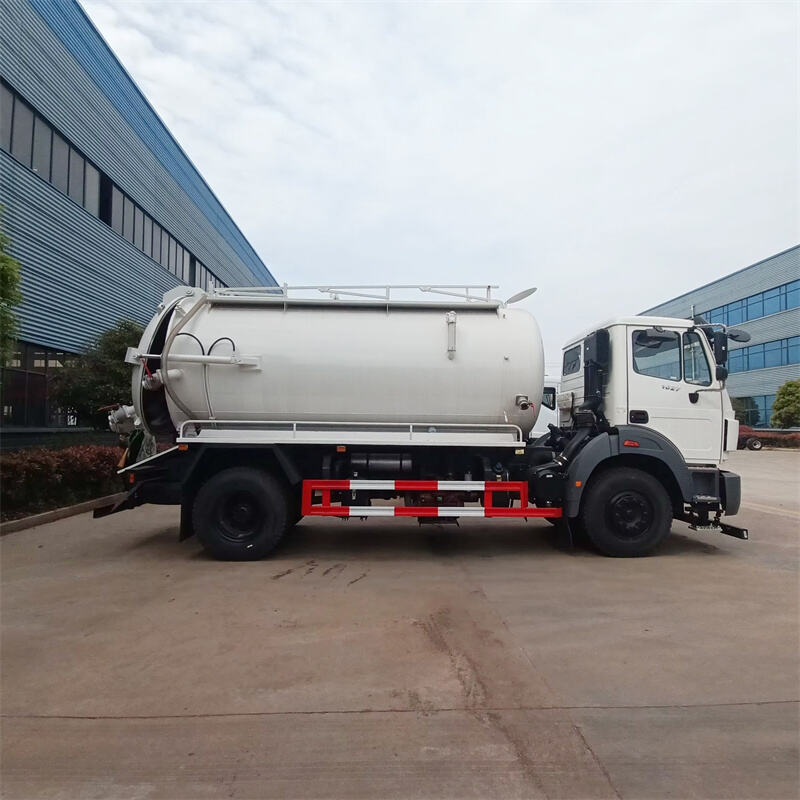

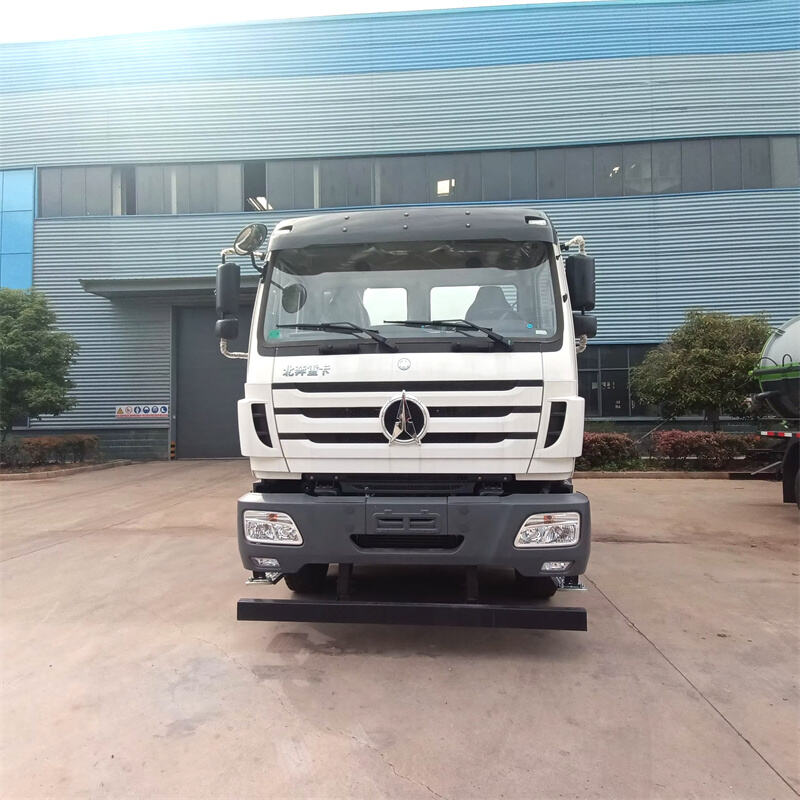

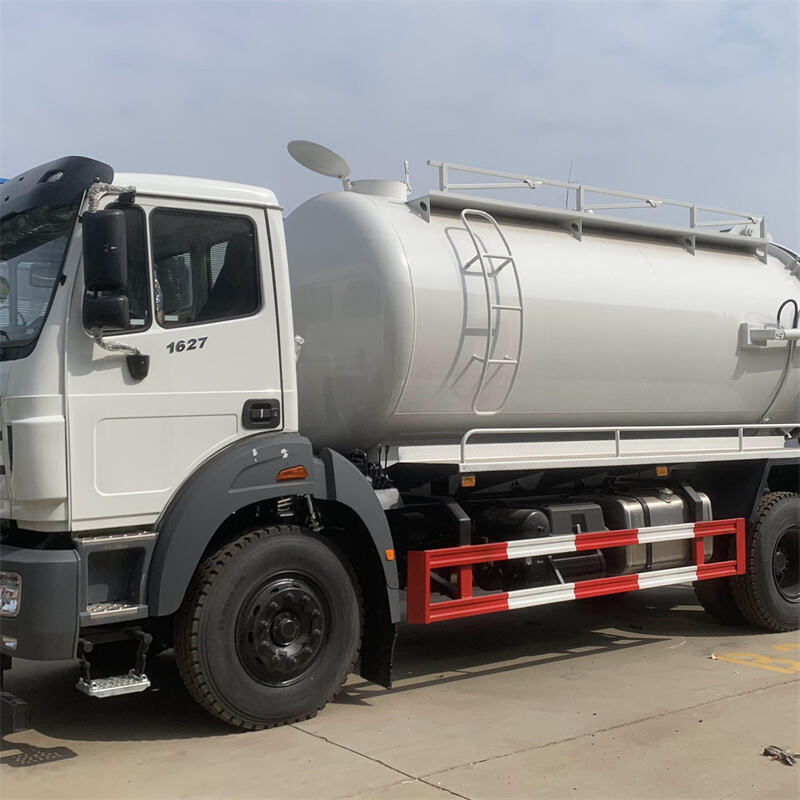

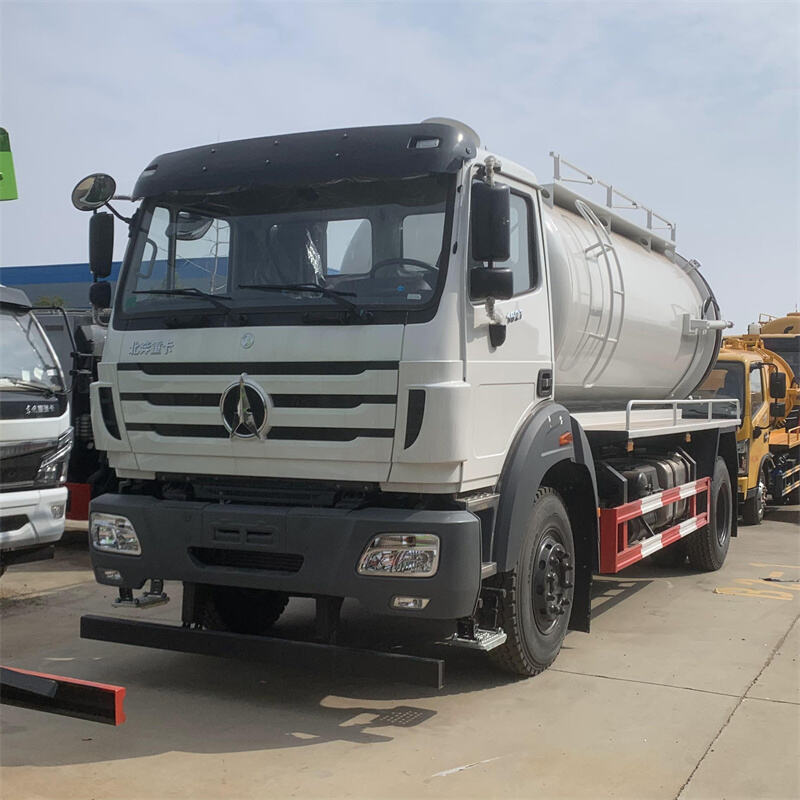

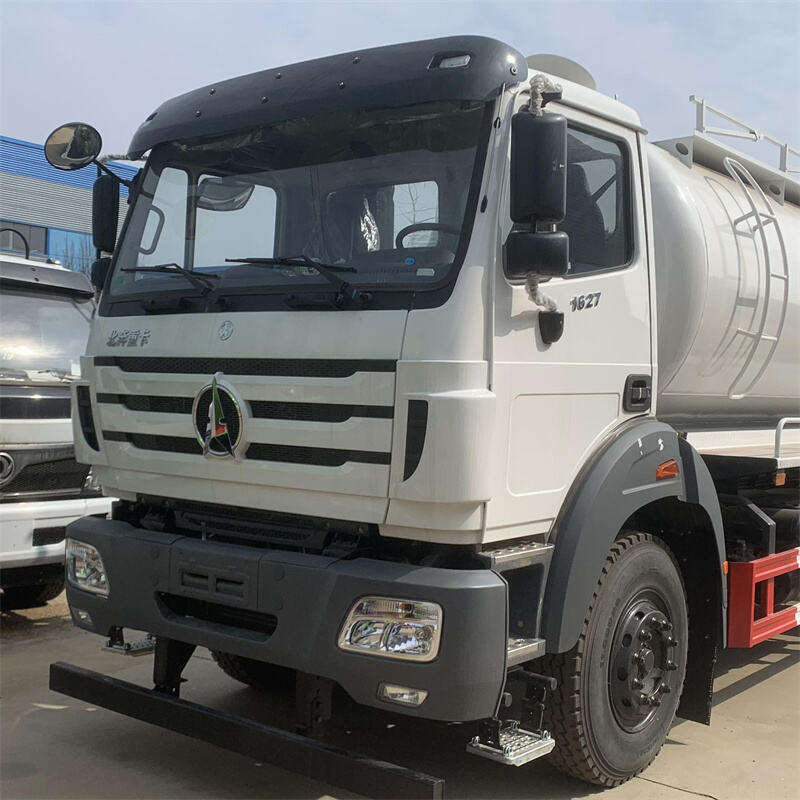

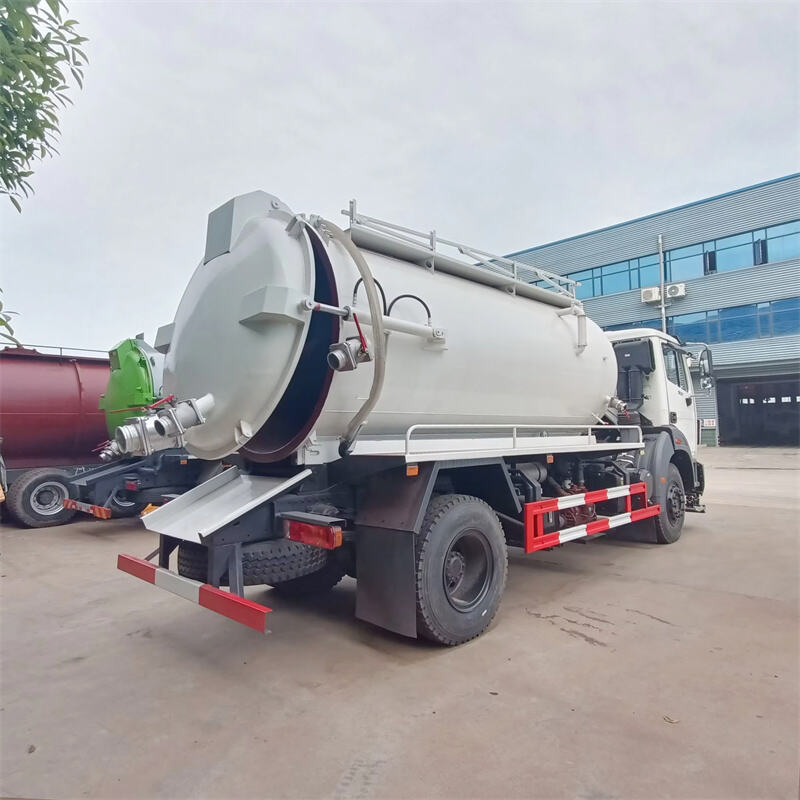

Beiben 8000 Litres Sewage Vacuum Truck

Item

Specification

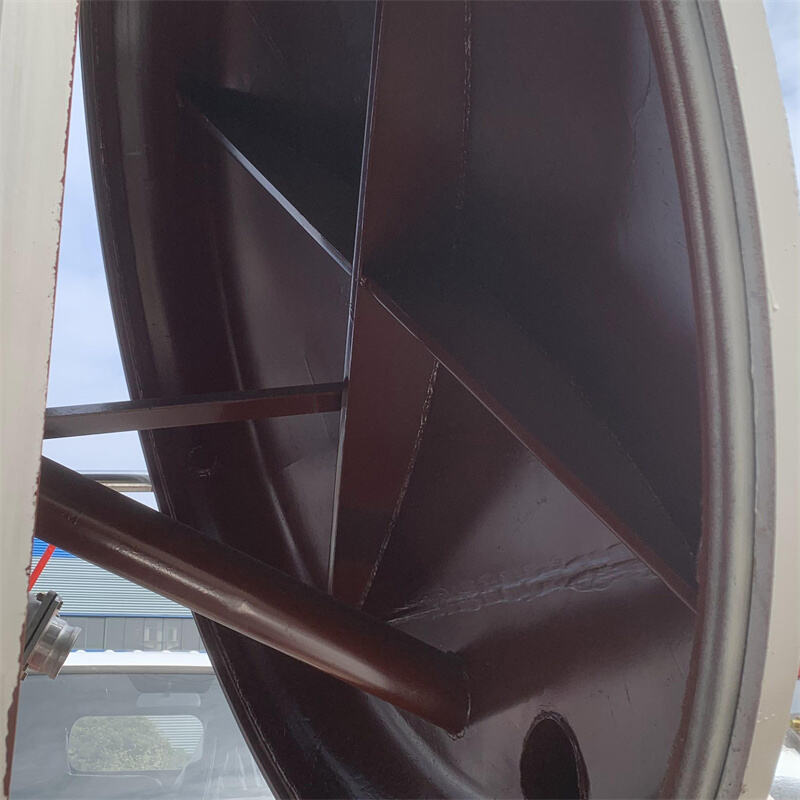

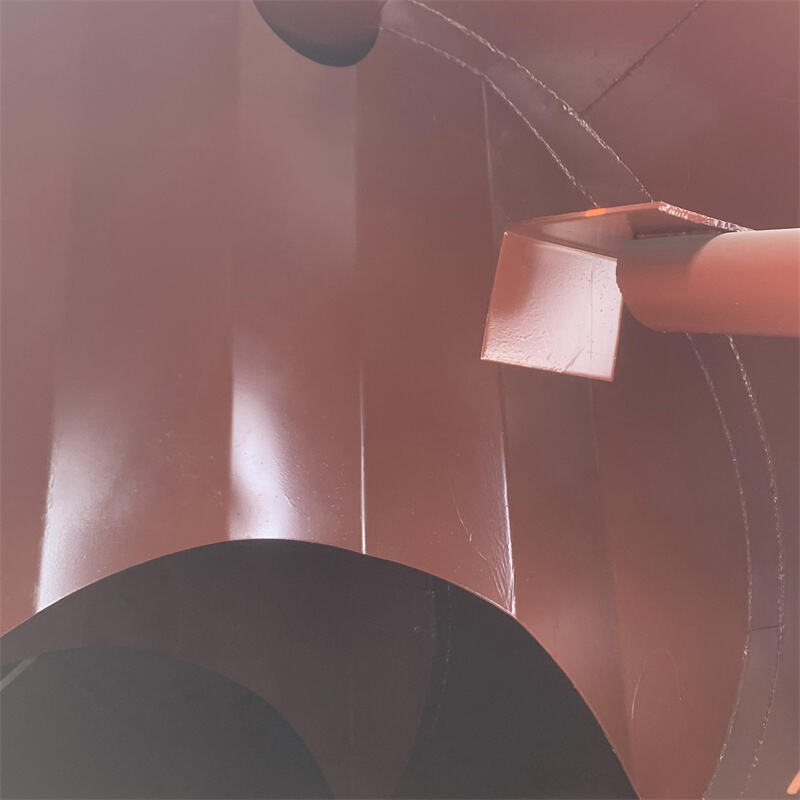

Tank material

Q235 carbon steel/head 5.0mm, Q235 carbon steel/5.0mm

Frame material

Q235B straight beam

Engine

YCD4F2L-115 YUCHAI 115HP

Emission Standards

Euro IIV

Gearbox

Beiben 5 speed transmission

Vehicle frame

Through girder frame

Tire

7.00R16 Steel tires

ABS

no have

A/C

Have

Sleeper

no have

Front / rear overhang

front:1055 mm,rear: 1640 mm

Departure corner

front:27,rear: 12

suspension

Leaf spring 6 / 6+5

Axles

front axles 2.5 ton, rear axle 5 ton

Wheelbase (mm)

3300

Number of tires

6+1

Tread (mm)

1525/1498

Drive type

steering wheel LHD

Braking System

Air brake

Spare tire frame

Have

Light

Front profile light, rear profile light, rear taillight assembly, side recovery reflector

Voltage

24V

Toolbox

Have

colour

According to user requirements

Fuel tank

75L

Spare tire rack

Have

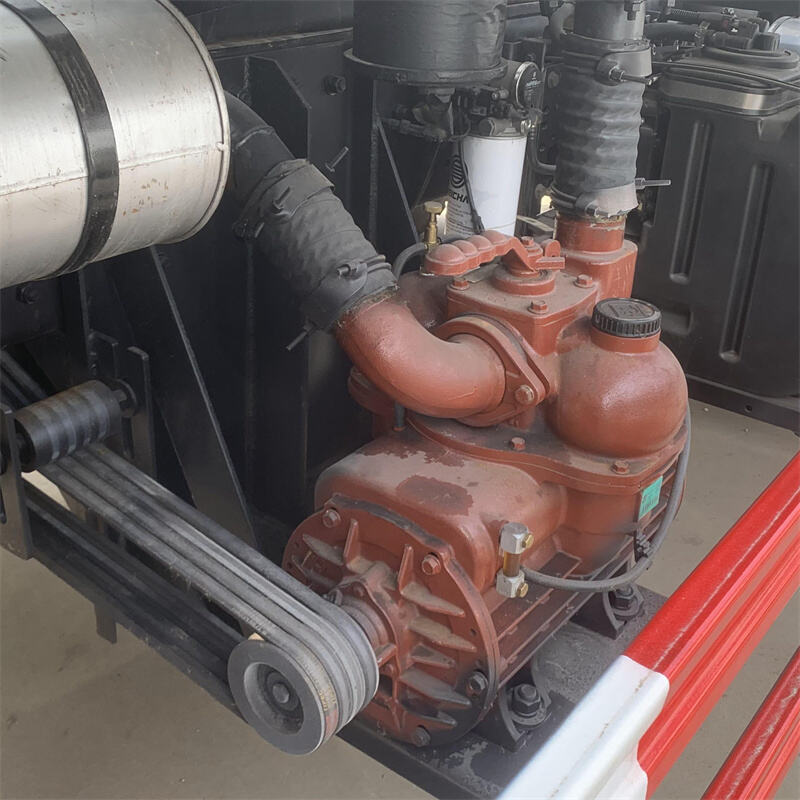

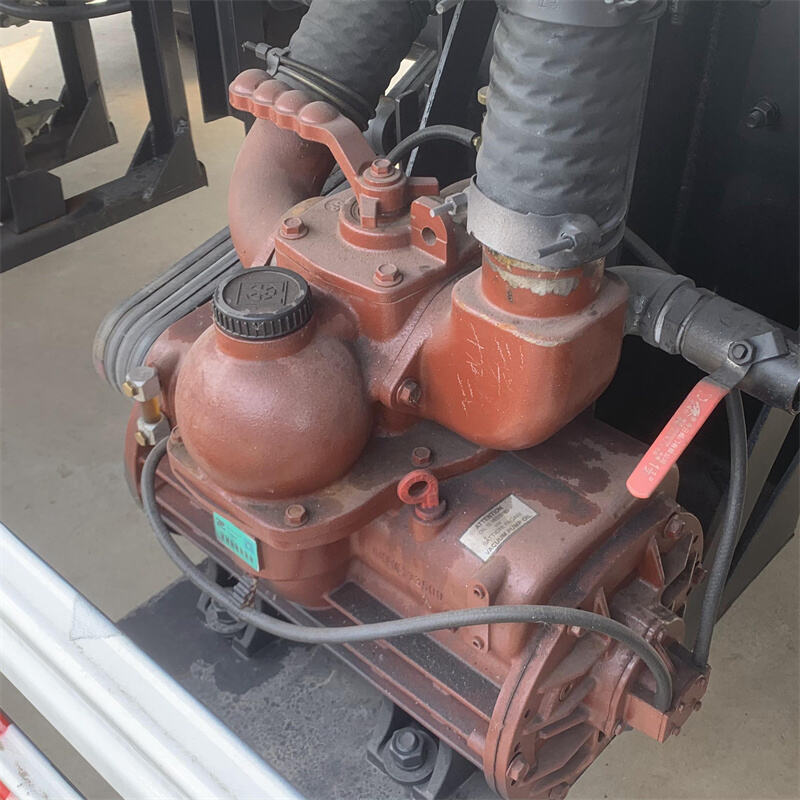

Vacuum pump

yifeng pump

Suction pipe

1pc/6m

Perspective Window

have

Self-flowing mouth

have

Anti-spill valve

have

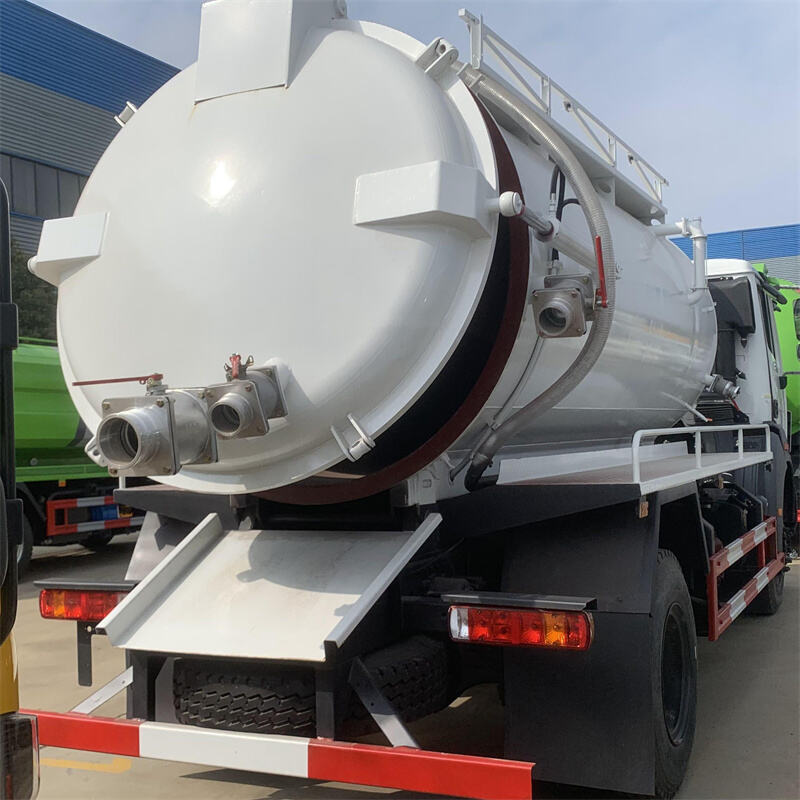

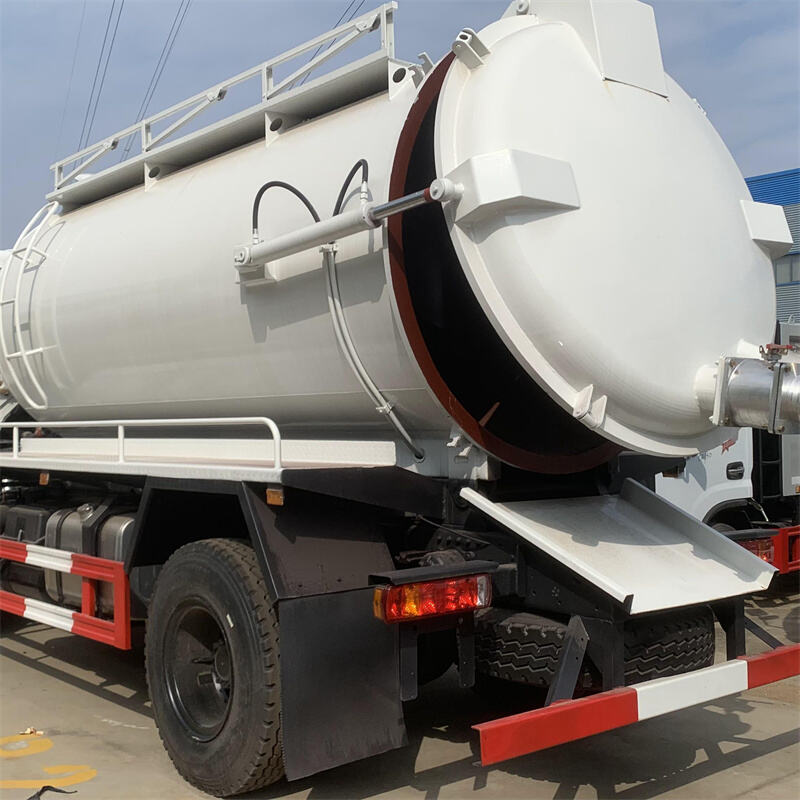

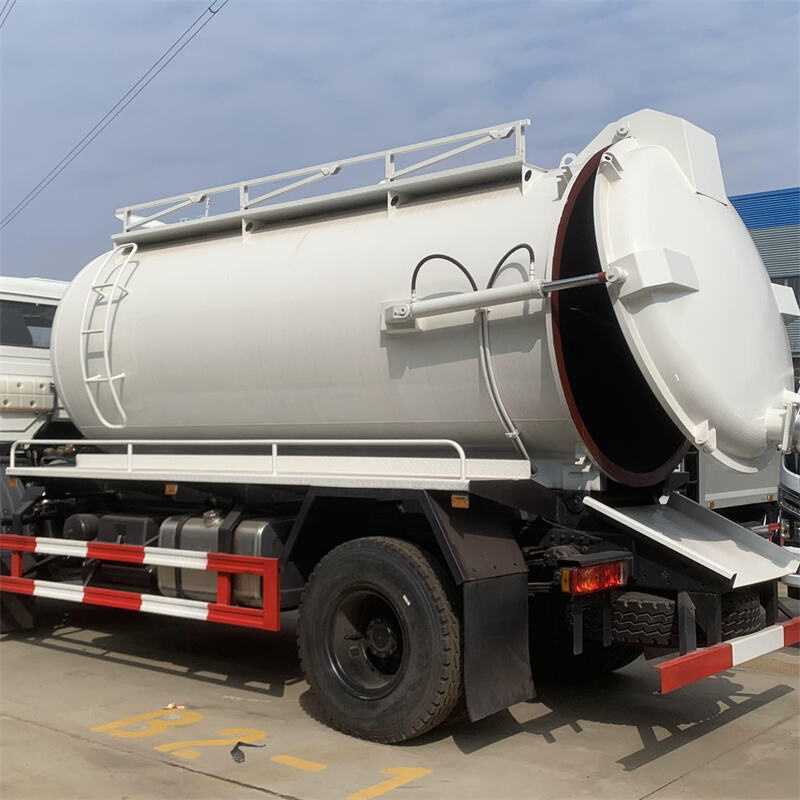

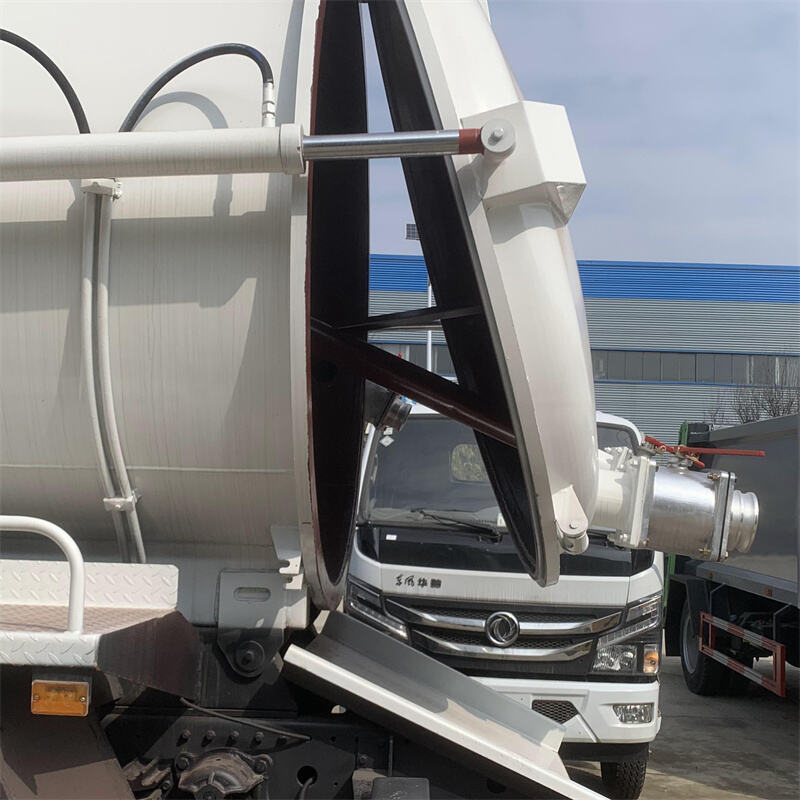

Tank back cover

Available with hydraulic opening

Oil and water separator

have

Self-unloading function

have / Double cylinder hydraulic dump / Rear discharge type

Remark

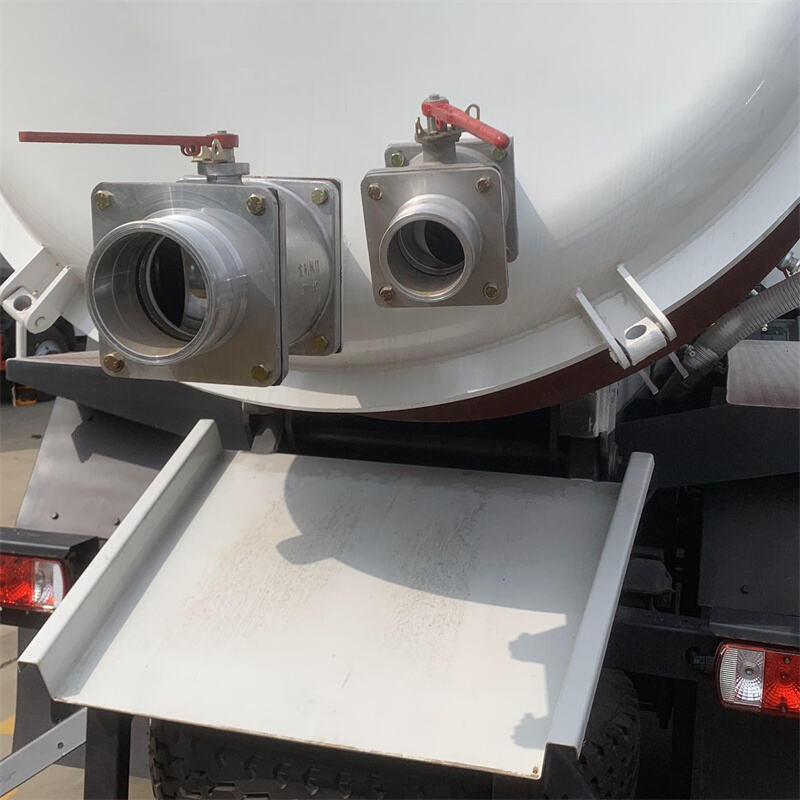

Large flow filter cup, one outlet at 150 of the back cover.
