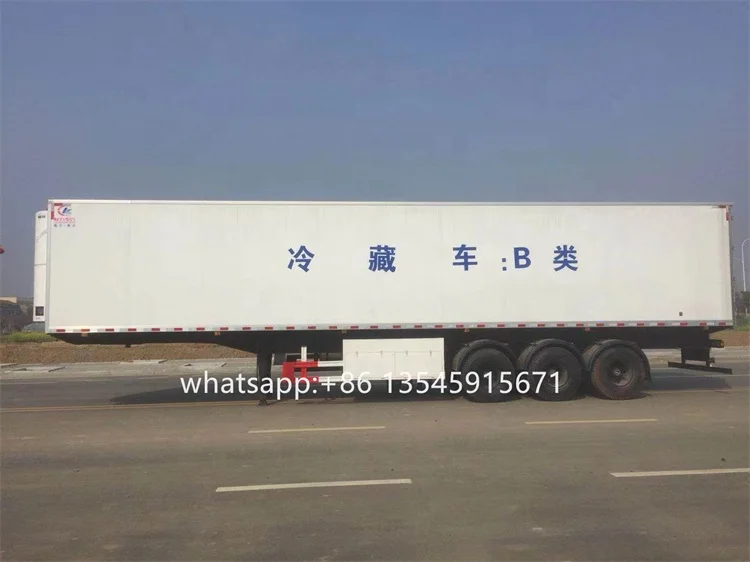

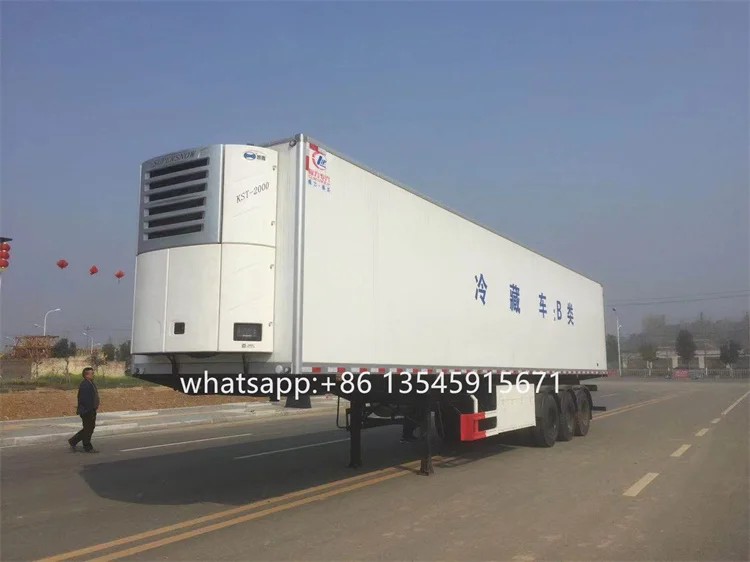

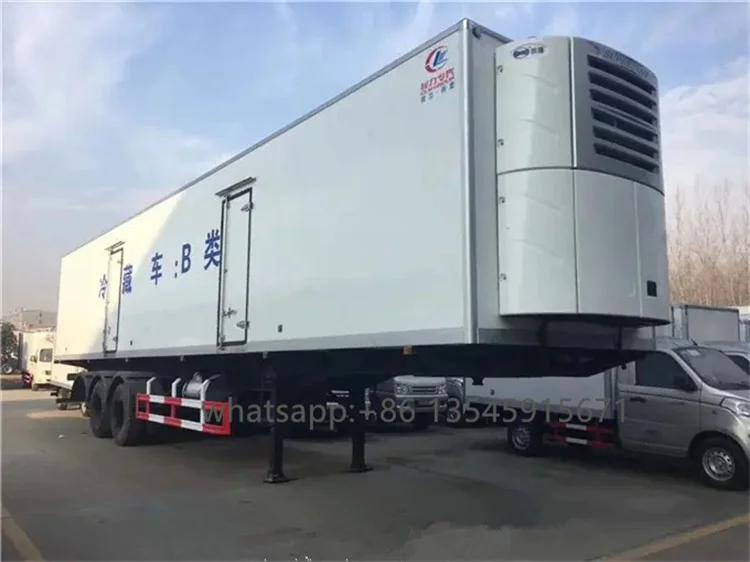

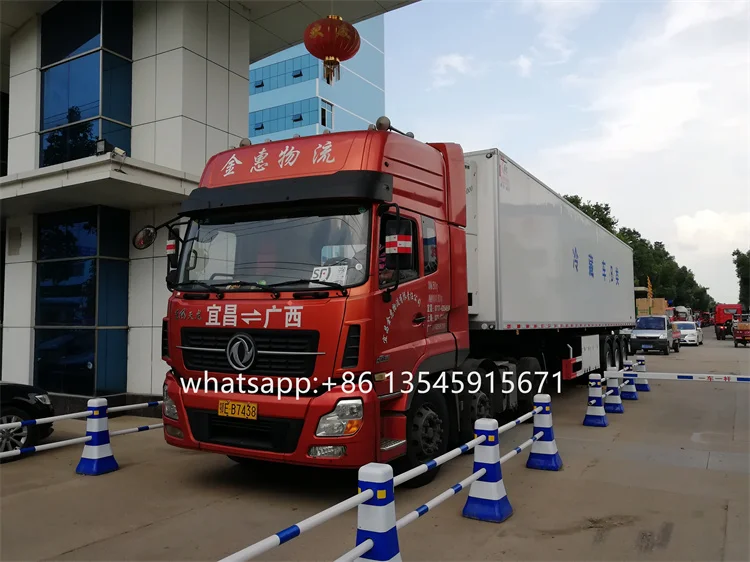

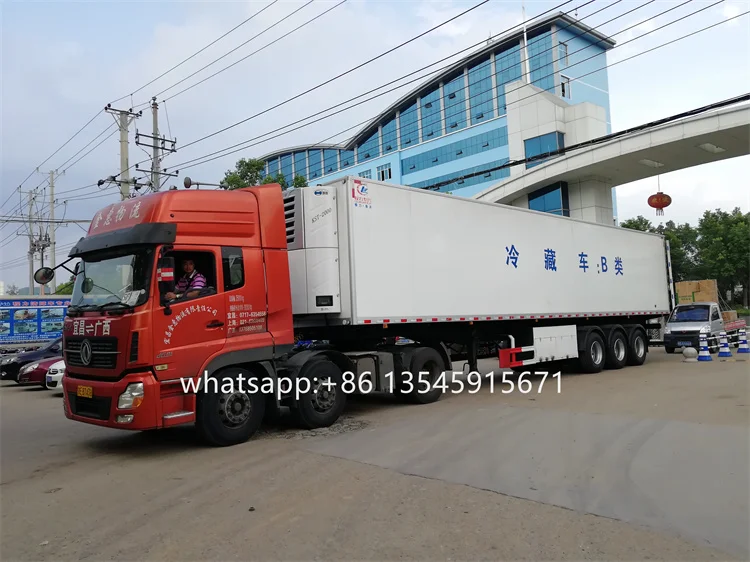

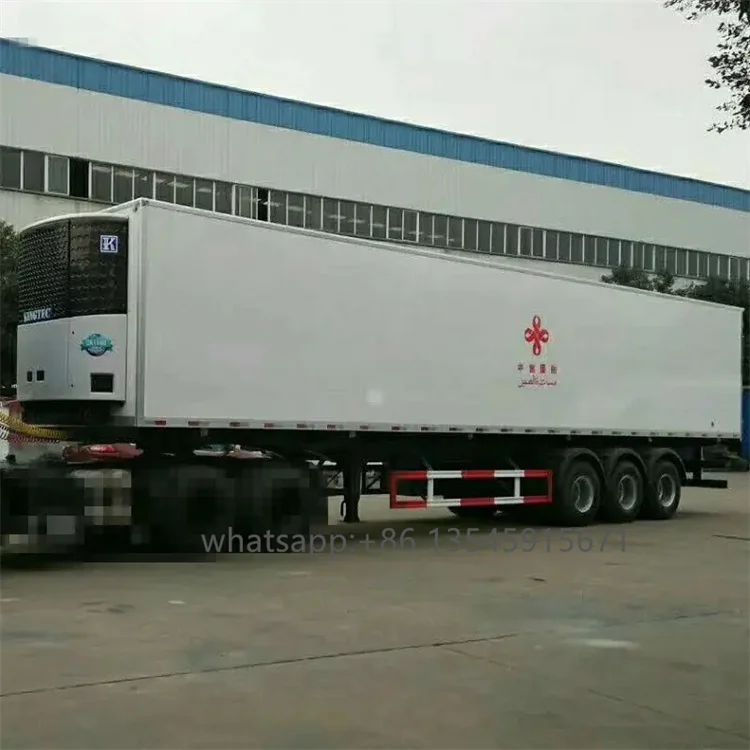

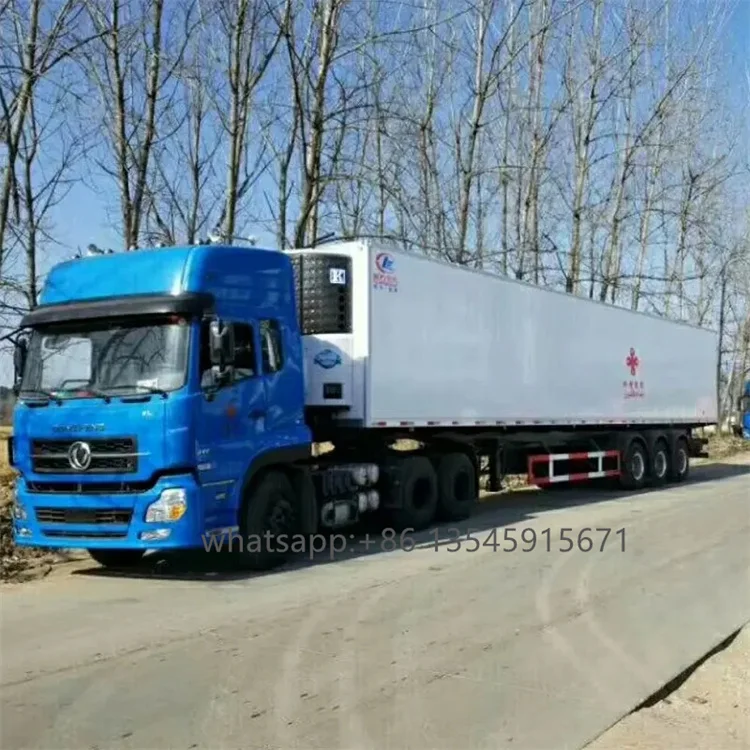

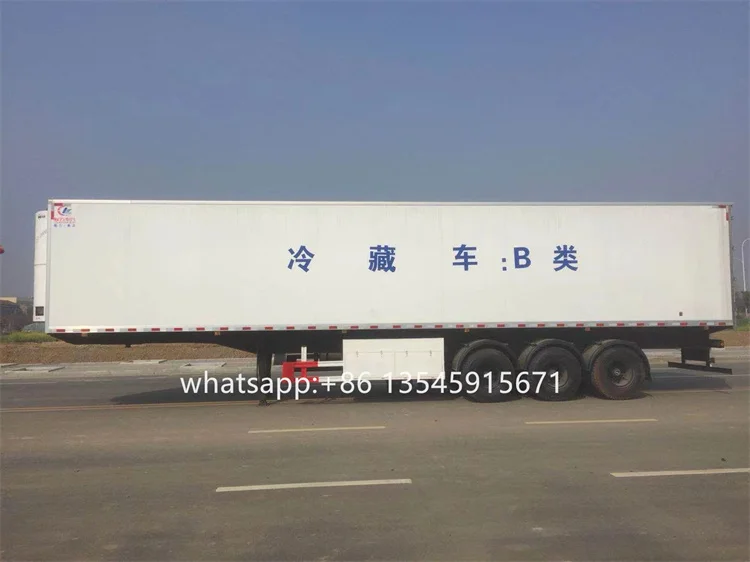

Minus 18 Degree Refrigerated 45ft Reefer Container Truck Van Box Semi Trailer
| Technical Parameter of 3 Axles 45ft Refrigerator Semi Trailer | |
| Overall Dimension | 13600mmx2600mmx4000mm( Exact size depends on the final design) |
| Refrigerator box dimensions | 13435x2470x2450mm |
| Loading capacity | 80cbm |
| GVW | Approx :40000KGS |
| Tare weight kg | Approx: 10400KGS |
|
Refrigerator box material |

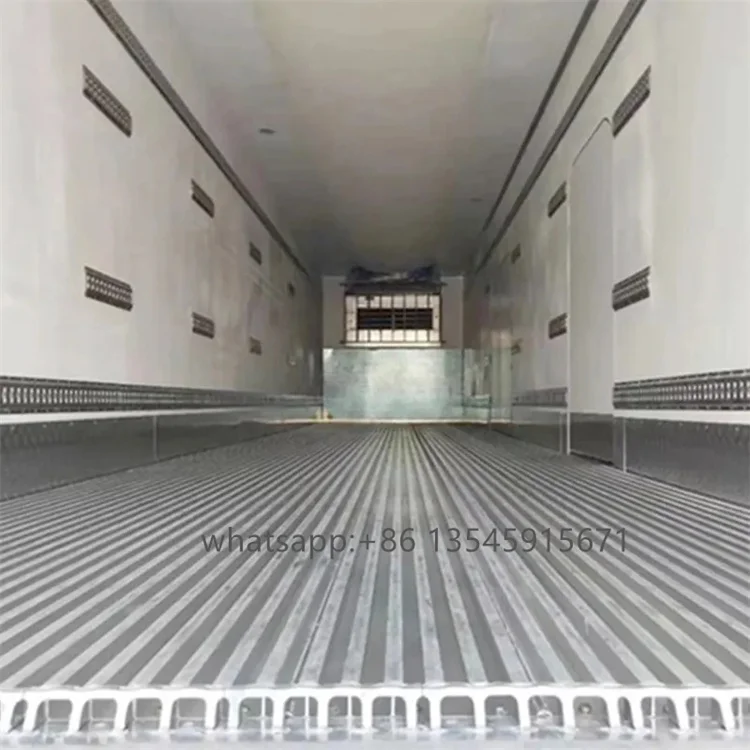

Inside and external FRP, left and right side plate 10 cm thick, roof 10 cm thick, bottom plate 10 cm thick, the internal top of the box is equipped with ventilation cloth,bottom vent. The bottom plate paved U-type aluminum track rail, rear horseshoe welding, large edge. |

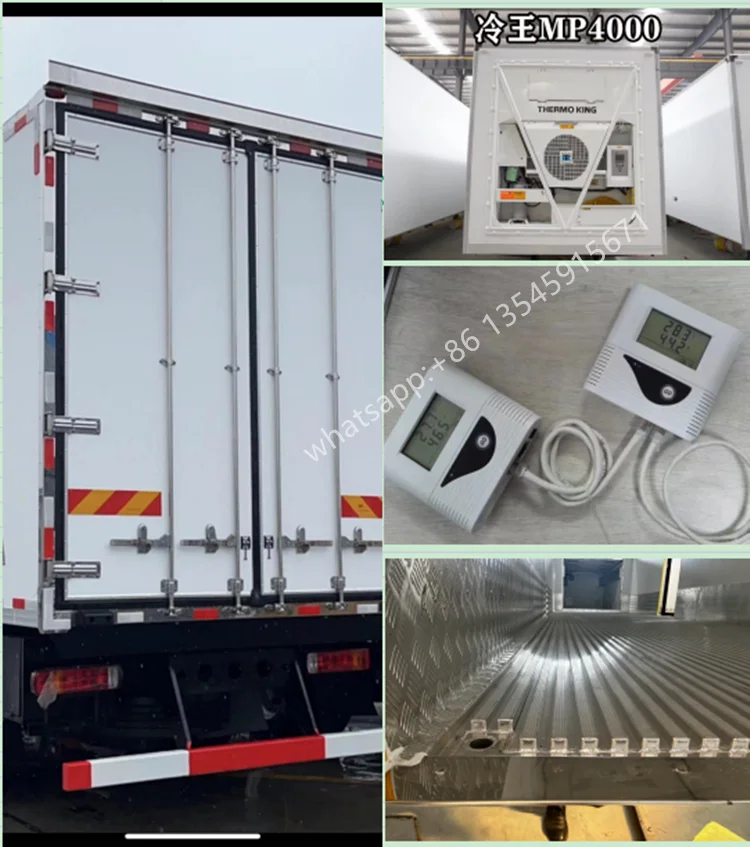

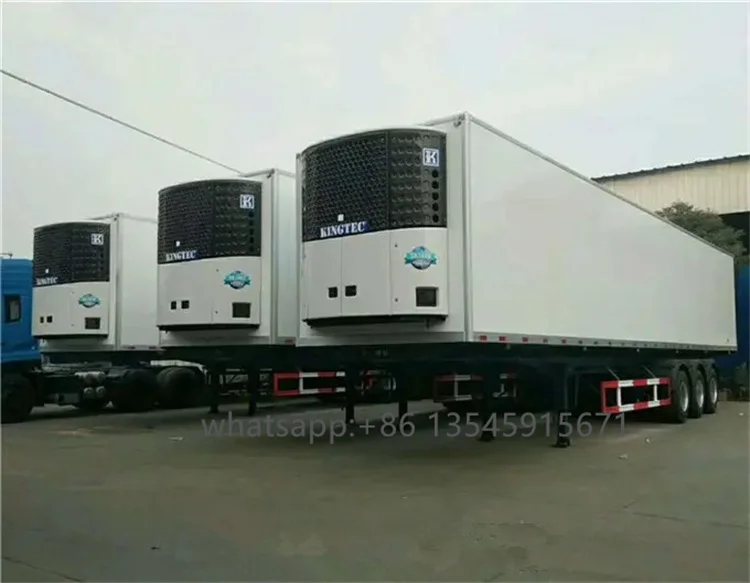

| Refrigerator unit | Thermo King brand MP4000,Independent refrigeration unit |

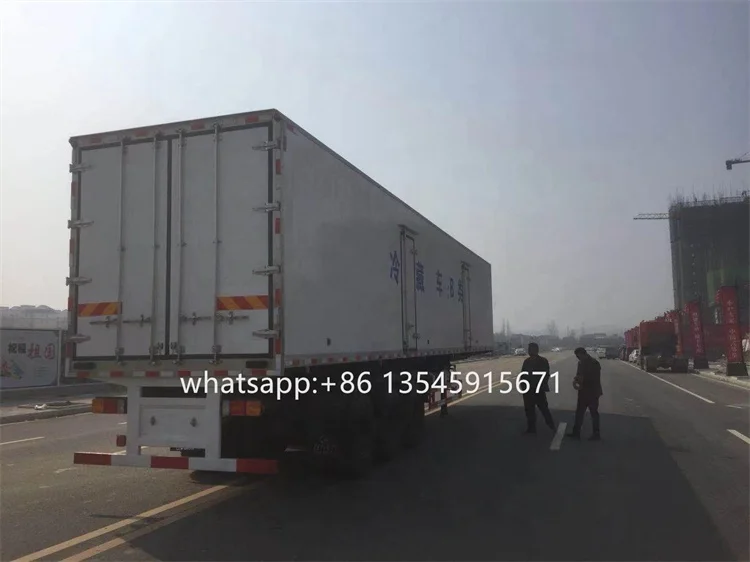

| Door | Side with two doors. Rear is double doors, the new model is 5 sealing ring, inside and outside with aluminum alloy pressure strip, sealing effect is better, no air leakage! |
| Special request from buyer | Add the temperature and humidity recorder, then can print the driver's record during the trip . |
| Axles | 3pcs 13TONS FUWA axles |
| Tire | 12.00R20 or 12.00R22.5 |

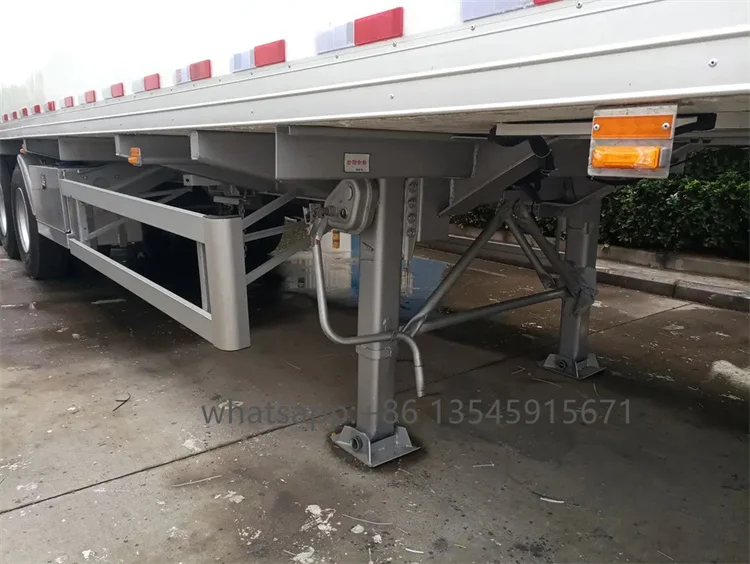

| Landing Gear | China brand 28T(two speed) |
| Brake System | WABCO Valve with big chamber |
| King Pin | JOST bolt-in king pin |
| Suspension | Mechanical suspension (Optional Air suspension) |
| Leaf Spring | 90(W)mm×13(Thickness)mm×10(Layer) or 100mm×12mm×12 |
| Rear ladder | Dismountable |
| Lights | Turning Light, Side Marker Light, Tail Light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |

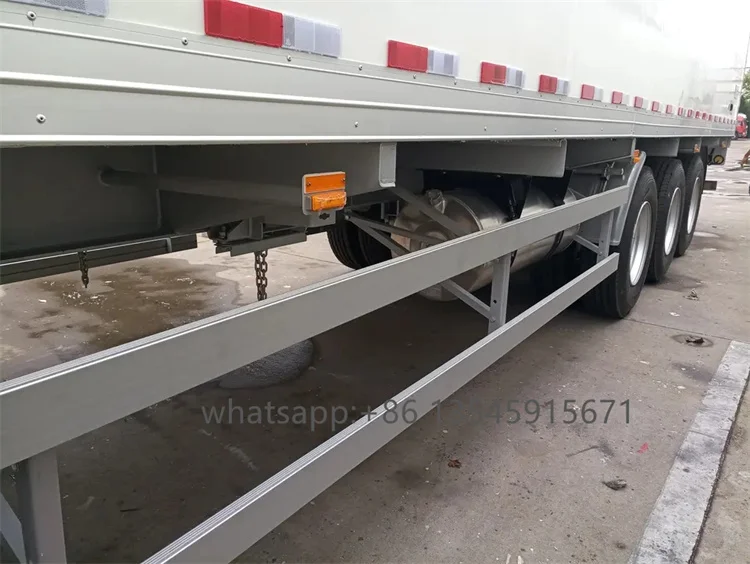

| Others | Two spare tire frame, iron guardrail, iron bumper, iron tool box. |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| ABS | Optional |
| Accessories | Factory standard |
|
Color /Logo |
As the request of buyer |
Minus 18 Degree Refrigerated 45ft Reefer Container Truck Van Box Semi Trailer
Minus 18 Degree Refrigerated 45ft Reefer Container Truck Van Box Semi Trailer
