We are 12 years professional manufacturer of special trucks,supply different kinds of trucks,can be customized as customer requirements.
(1). Capacity: 0.5-30 ton refrigerator truck,31-50 ton refrigerator trailer.
(2). Steering wheel: both left and right hand drive,meet the needs of different countries.
(3). Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 refrigerator truck
(4). Truck chassis: option japan and china brand
3 axle refrigerator semi-trailer meat hook refrigerated trailer for sale.

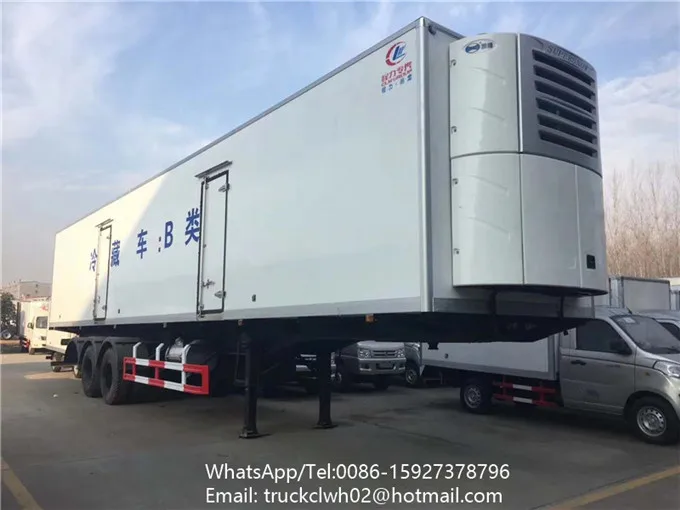

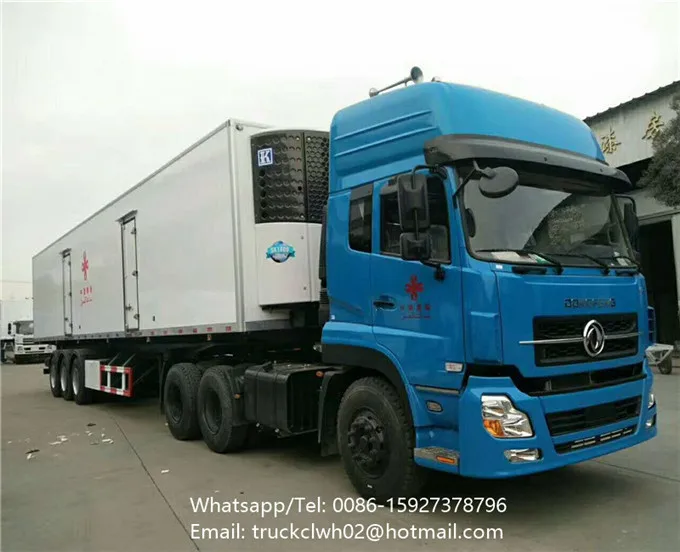

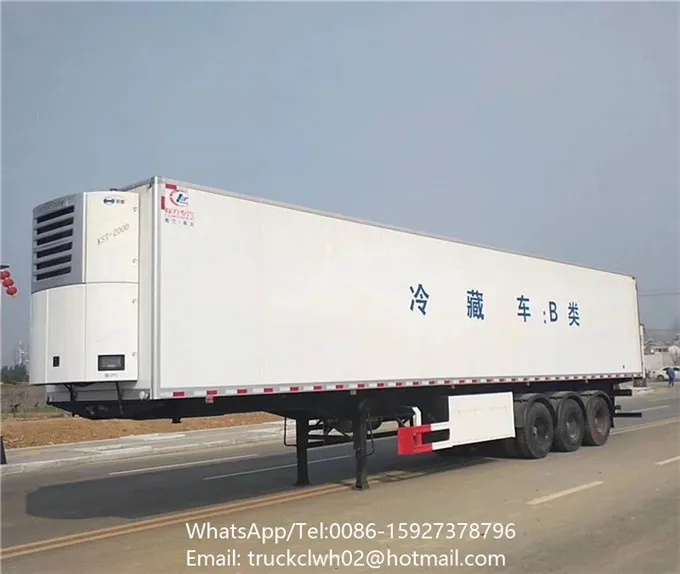

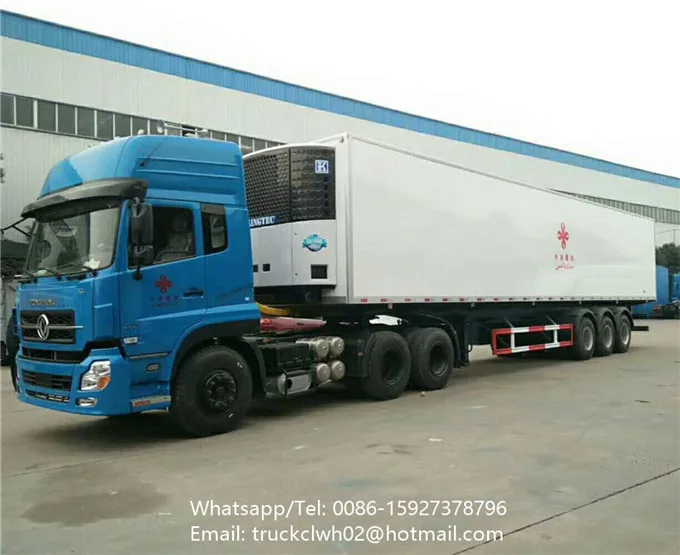

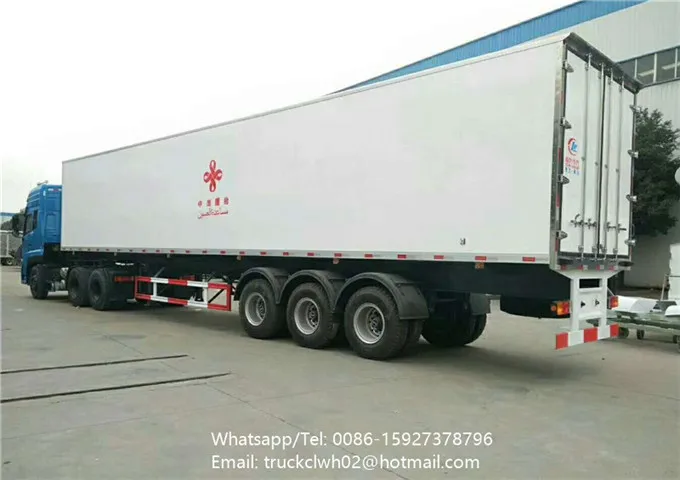

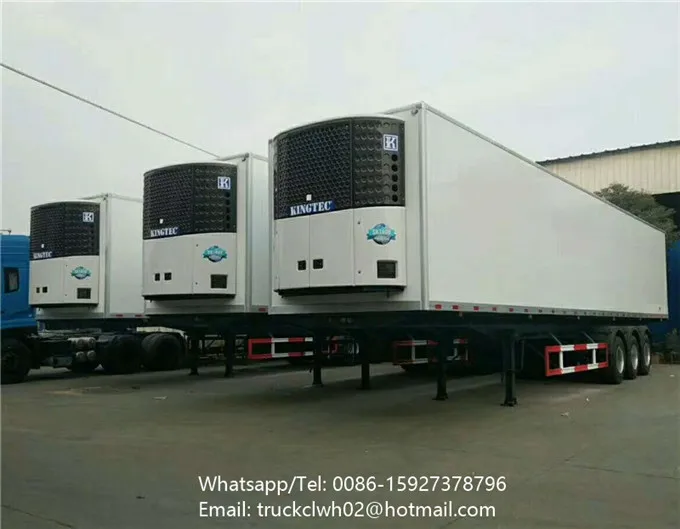

Pictures
Specification :
|
Complete Refrigerated Semi Trailer Parameter |
|
|
Overall dimensions (mm) |
13500 x 2600 x 3995 |
|
Refrigerator body size (mm) |
13300 x 2400 x 2300 |
|
Gross Vehicle Weight (kg) |
Appro × 60595 |
|
Net weight (kg) |
Appro × 10400 |
|
Loading (kg) |
Appro × 50000 |
|
Wheel base (mm) |
7350+1310+1310 |
|
Max speed (Km/h) |
- |
|
Refrigerator Van Body Parameter |
|
|
Standard configuration |
1) Equipped with china brand cooling system, keep the lowest temperature -18℃ . 2) Refrigerated body inner and outer material are FRP(fiber reinforced plastic). |
|
|
3) Right side open two single door. 4) Intermediate insulation material is polyurethane, thickness 10cm. 5) Door frame material are stainless steel. 6) The door lock material is galvanized. 7) The box body is aluminum profile hemming. 8) Refrigerator box roof is sealed, rear open double doors. 9) Protective material: Q235A carbon steel. 10) Connection method: the left and right sides and the lower part of the protection are welded. 11) Rear protection height from ground 450mm. |
|
Semi Trailer Parameter |
|
|
Main beam |
Heavy duty and extra durability design,opting high tensile steel A345B,welded by automatic submerged-arc processes |
|
Axle |
China famous brand FUWA axle. Axle load capacity 13 ton * 3. |
|
Landing gear |
China famous brand JOST brand 28T |
|
King pin |
90 # |
|
Suspension |
FUWA brand mechanical tandem suspension |
|
Lights and wire |
- 24V 7-pin socket - China brand standard rear lights - orange turning lights,red rear reflectors - 3 orange side lights and 3 orange side reflectors (each side 6) - standard cable. |
|
Tire model |
12R22.5 |
|
No.of tires |
12pcs |
Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
Cheng Li Special Automobile Co., Ltd is an important part of Hubei Chengli Group, we are large scale special truck modification plant for DONGFENG, FOTON, SINOTRUK, JAC, JMC, ISUZU, and we are domestic well-known special trucks manufacturer for landscaping vehicles, petrochemical vehicles, municipal sanitation vehicles, pressure vessels.National product code: "CLW", government and enterprise procurement designated special vehicle supplier.
Company is located in Cheng Li Automobile Industrial Park,Zengdu District,Suizhou City, Hubei Province, China, near Wuhan Tianhe International Airport.
Company covers an area of more than 1,000 acres, more than 8,000 employees, among them, the technical staff is more than 500, more than 2,000 skilled workers, the annual production capacity is 100,000 vehicles.
Our factory has more than 2000 sets large production equipment,detection equipment more than 200 sets , 16pcs assembly production lines, strong technical force and the detection means complete. Now already through a comprehensive ISO9001-2008 international quality system certification, all products through the 3C international compulsory product certification, and through the export of the product certification.
Our company is China top 500 private manufacturing enterprise.
