A> The pump can be designed to pump in and out throw meter, or not through meter, self-flow through or not through meter. B> The tank can be designed as a single compartment or several compartments. C> You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm thickness, insulation can be used rockwool, glasswool, polyurethane foam, aluminum silicate. The cladding can be used 1.8-2mm thick white (RAL9003) glass reinforced plastic, 1.2mm cold carbon steel, 1.00mm stainless steel sub-mirror or matter b
|
Model :CLW62**50LHJ |
|
|
Design standard |
According to ADR standard |
|
Name |

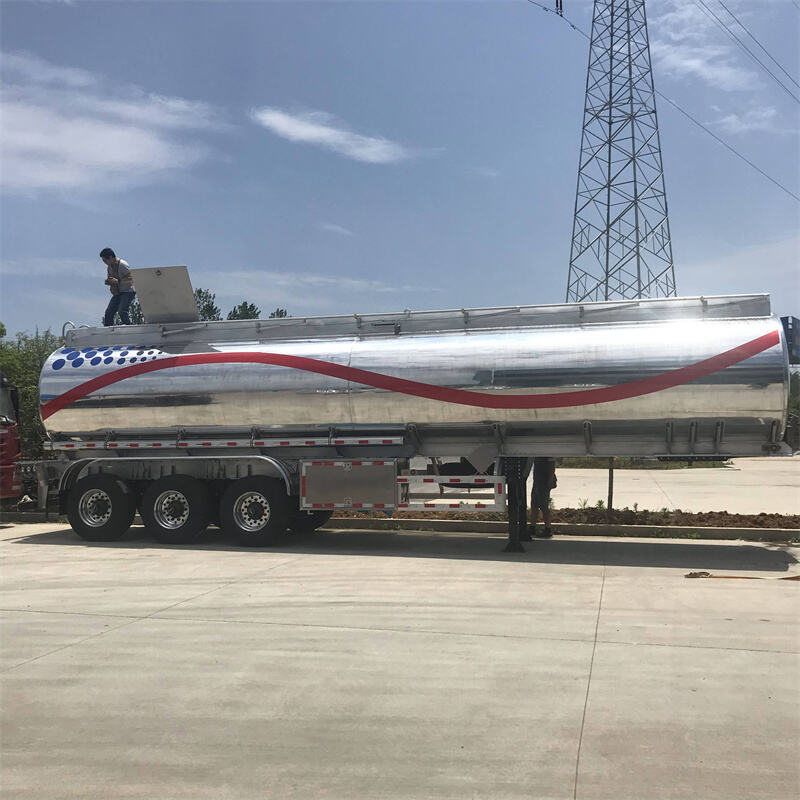

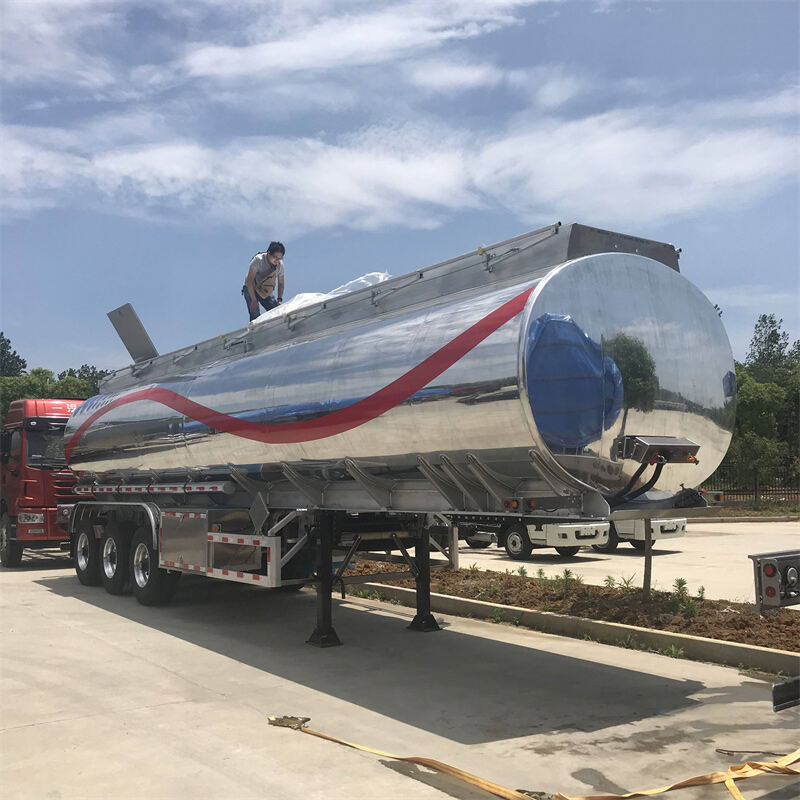

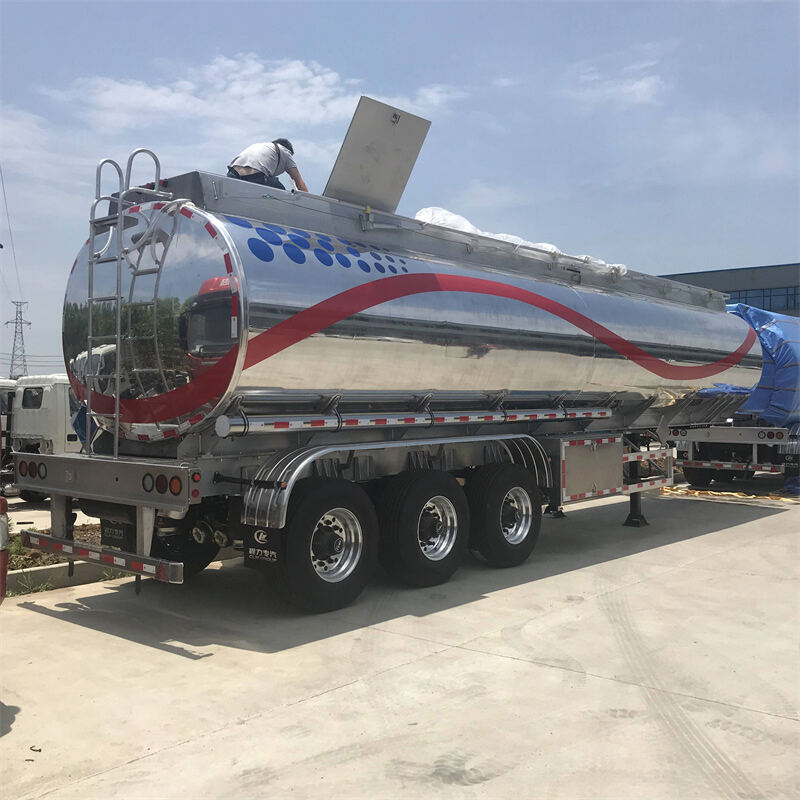

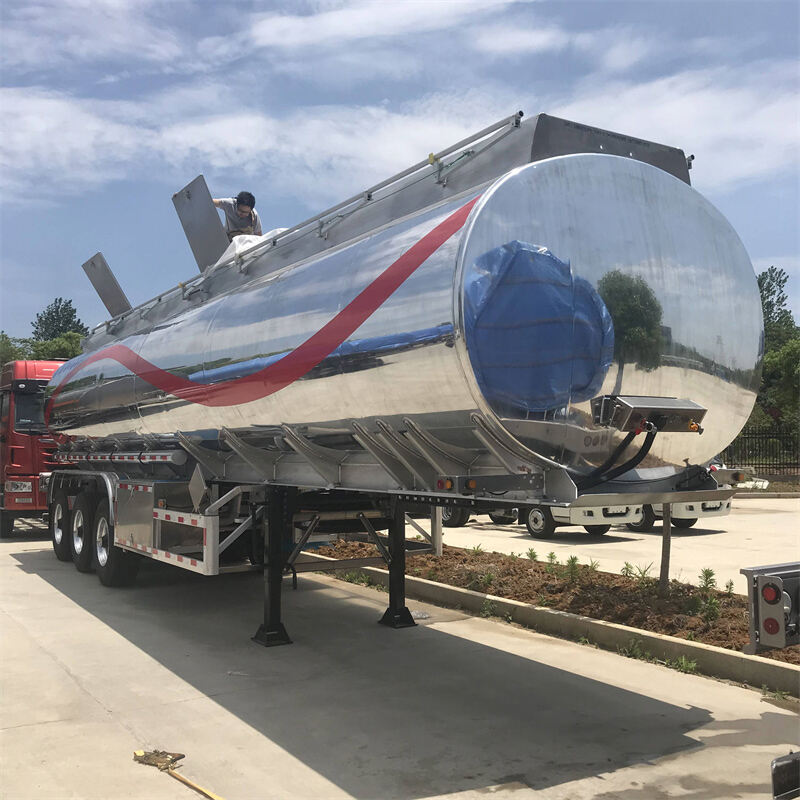

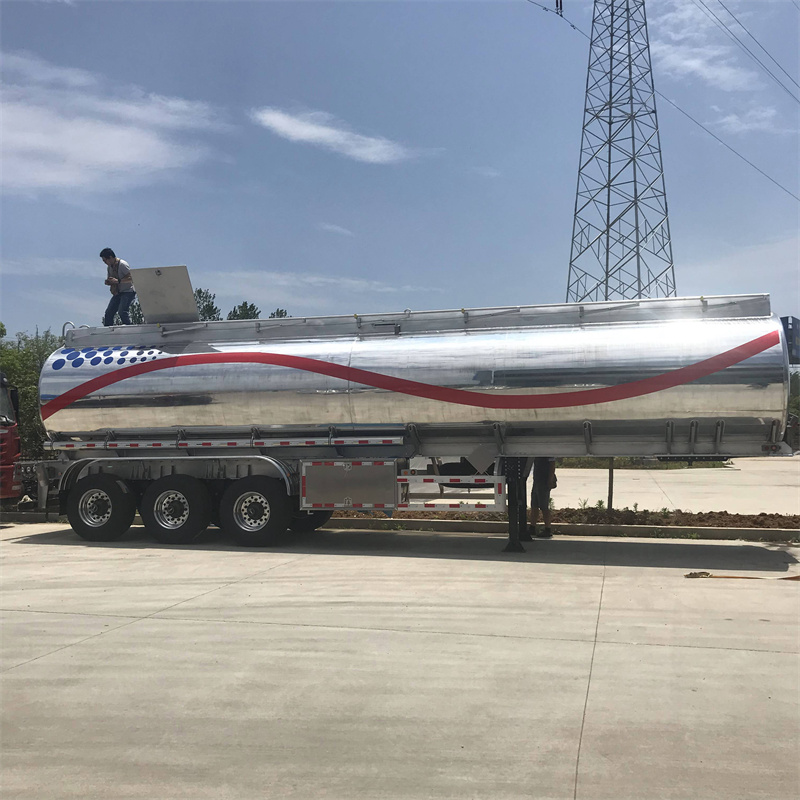

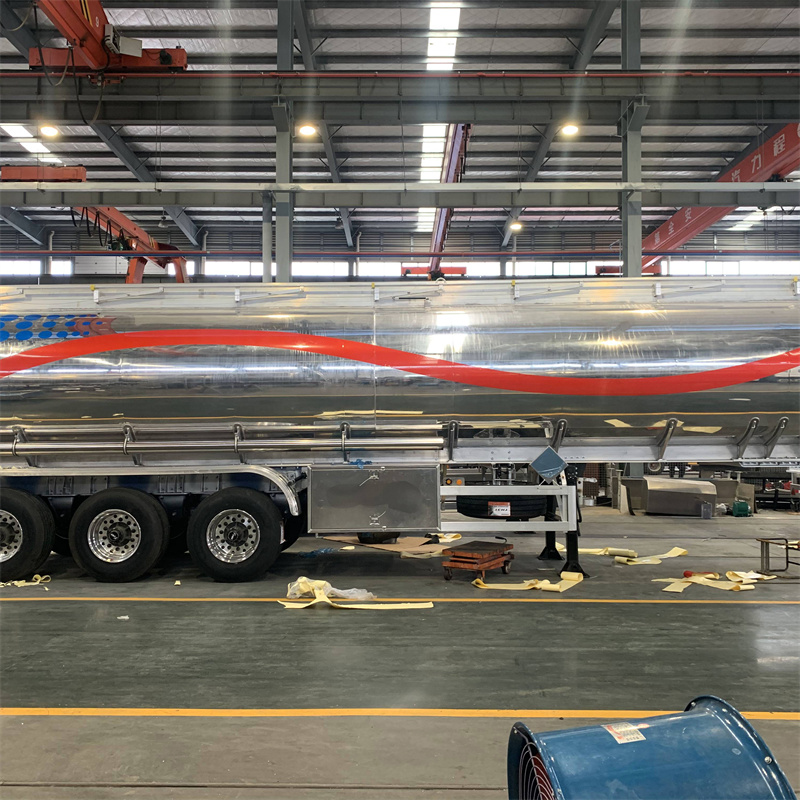

42000L Aluminum Fuel Tanker semi trailer for Saudi Aramco |
|
Loading medium |
Diesel / Kerosene / Gasoline / Aviation Fuel |
|
Loading system |
Top loading / bottom loading |
|

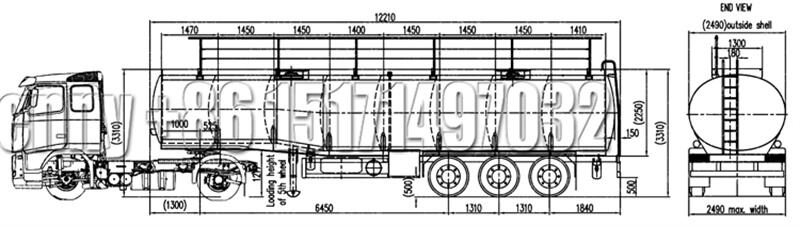

Overall dimensions(mm) |
12210x2490x3310 |
|
GVW(kg) |
40000 |
|
Curb weight(kg) |
5980 ± 3% |
|
Rated loading(kg) |
31000 |
|
Tank |
|
|
Actual loading capacity |
42000liters(Volume filled with water) |
|
Tank section |
Square circle ( goose neck) |
|
Tank material /thickness |
Aluminum alloy 5454 confirming ADR,5.28mm |
|
End /thickness |
Aluminum alloy 5454 confirming ADR,6mm |
|
Spurnwater /thickness |
Aluminum alloy 5454 confirming ADR,6mm |
|

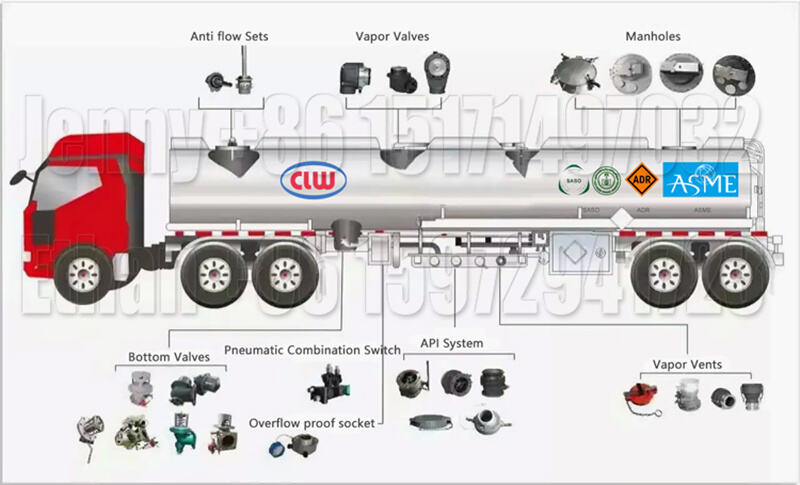

Pipeline and accessories |
|
|

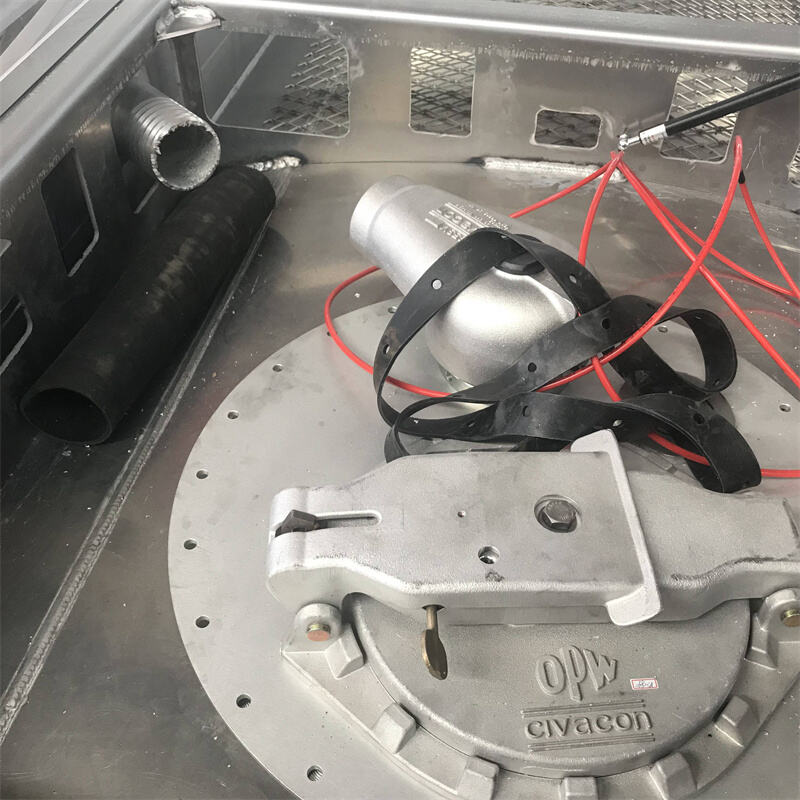

Manhole and quantity |
EN NORMS 2PCS |
|
Breather valve |
Aluminum alloy,2sets |
|

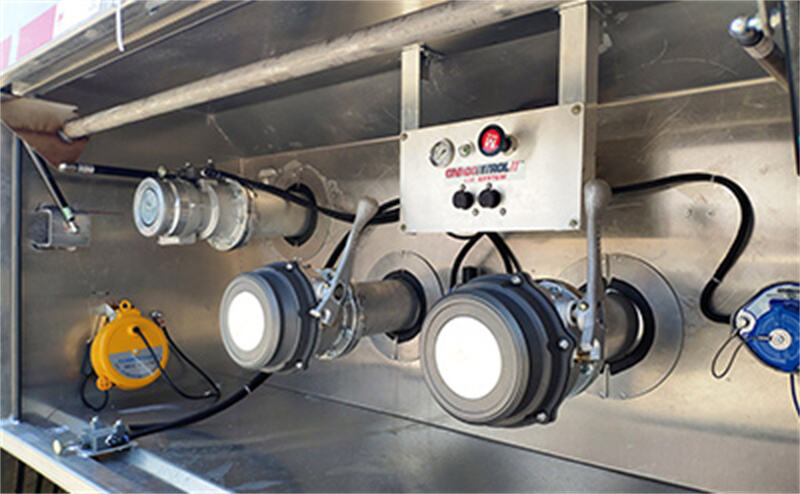

Discharging port |
Bottom unloading |
|
Oil and gas recovery |
With Oil and gas recovery system |
|

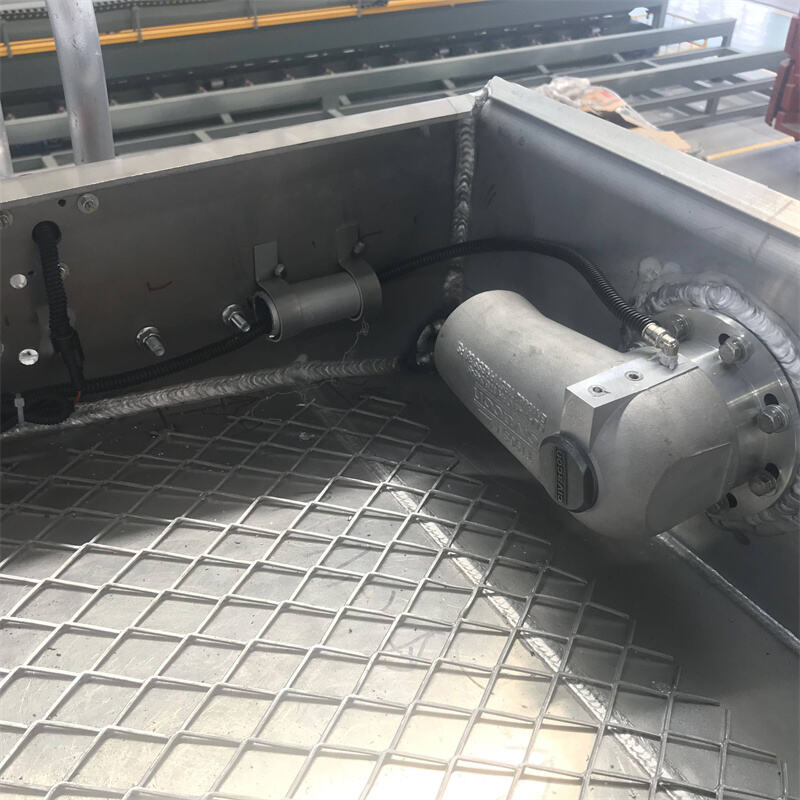

Anti-overflow |
With Anti-overflow system |
|

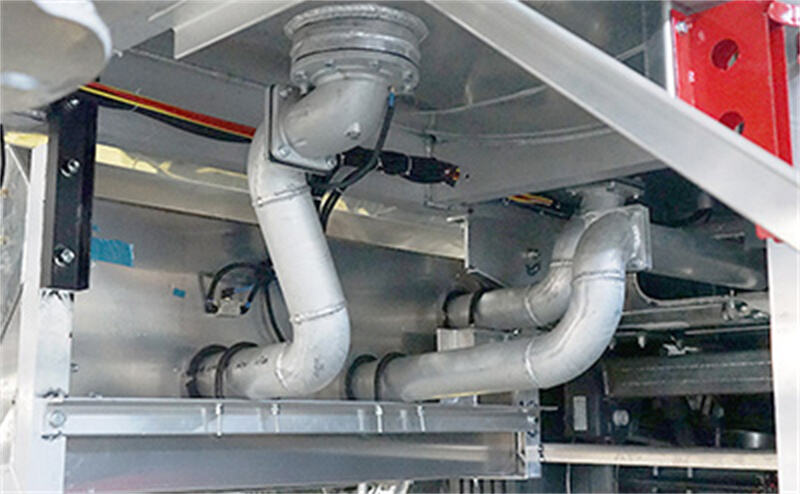

Unloading system |
Through from 4” API couplin single line free discharge collector pipe install to single point outlet speedly discharge. |
|
Accessories |
|
|

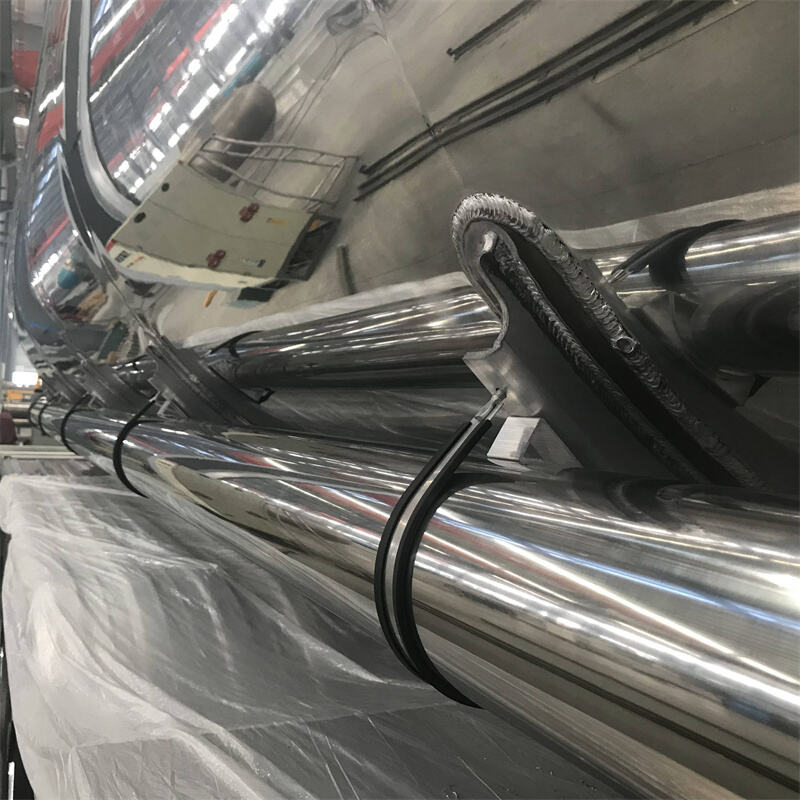

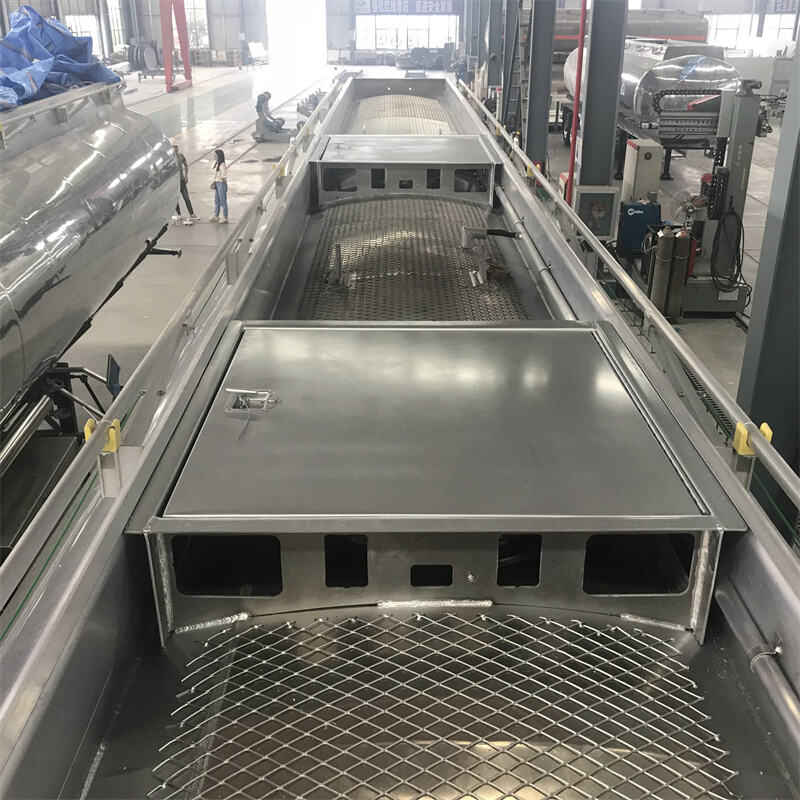

Tank roof guardrail |
Segmented lifting guardrail, roof anti-skid net |
|
Hose storage box |
Stainless steel hose case, 1pcs of each on left and right |
|
Unloading hose |
L=6000, 3-inch steel wire discharge pipe |
|
Tank climbing ladder |
Tank interior climbing ladder, External climbing ladder |
|
Tool box |
aluminum alloy |
|
Spare wheel carrier |
Tire carrier manuel type |
|
mudguard |
Factory standard Aluminum alloy integral |
|
side guard |
Factory standard Aluminum alloy |
|
Rear bumper |
Factory standard Aluminum alloy |
|
fire control unit |
8kgs fire extinguisher,6pcs |
|
Antistatic device |
Conductive electrostatic trawl 1pcs, conductive electrostatic connection disk 1pcs |
|
Others |
Dip stick for leveling, water tank 50L |
|
Chassis |
|
|

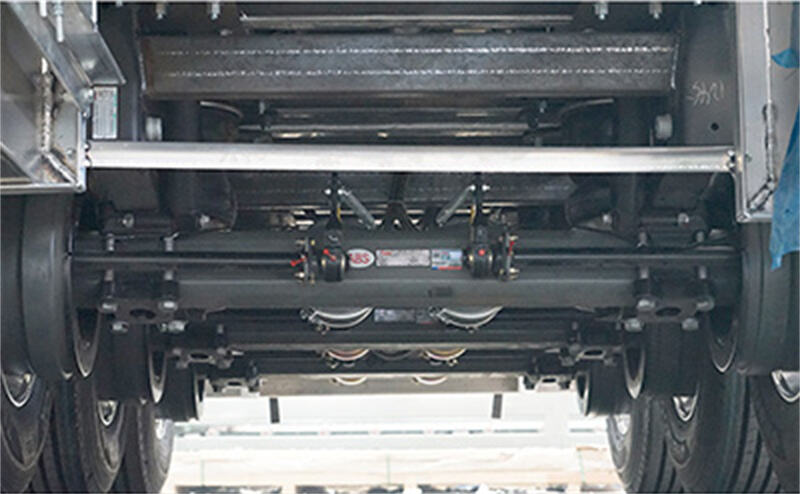

Axles |
BPW 9Tons axles, first axle lift |
|
Axles number |
3pcs |
|

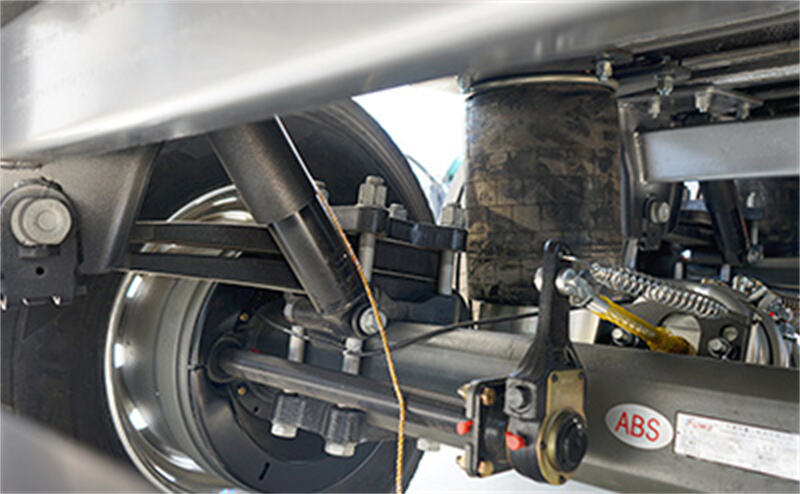

Suspension |
BPW air bag suspension |
|
Tire |
385/65R22.5 (Brand : Michelin),7pcs |
|
Steel ring |
22.5x11.75 steel ring, 7pcs |
|
Lifting legs |
JOST Linkage leg |
|
Kingpin |
JOST |
|
Circuitry |
|
|
Lamps |
24Vsystem,7 core socket,LED lamp |
|
Circuitry |
Explosion-proof junction box |
|
|
Rear bumpers are fitted with turn lights, brake lights, reversing lights, driving lights and fog lights, respectively |
|
Wire |
All wires are sealed with bellows |
|

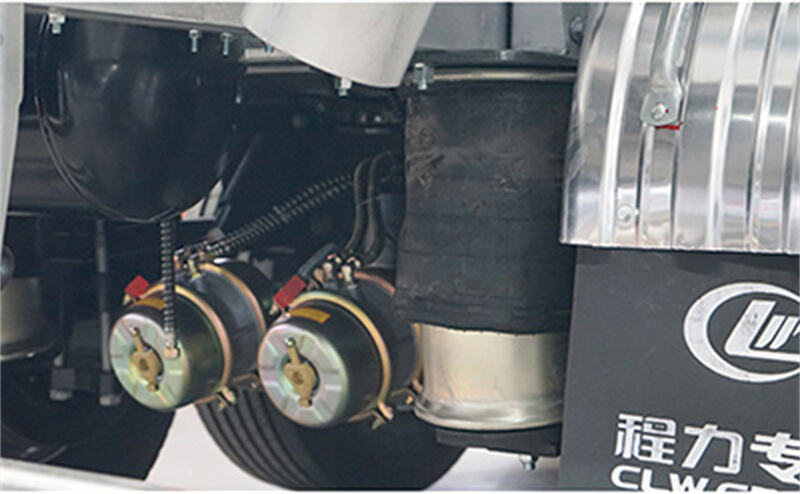

Brake system |
|
|
Relay valve |
WABCO |
|

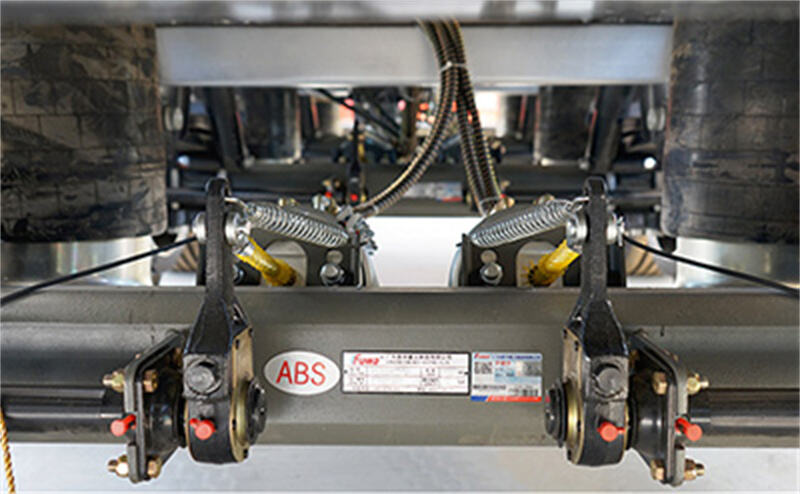

ABS |
WABCO |
|
Others |
Factory standard |
|
Anti corrosive protection |
|
|
Tank inner surface |
Clean |
|
painting |
customized |
|
Label |
|
|
Nameplate |
customized |
|
Logo |
customized |
|
Tank label |
Orange reflector belt, tank sides and tail |
|
Red and white reflective label |
3M Reflective paste |
|
Company label |
CLW |
|
Files, tools with fuel tanker |
|
|
Tools |
1 set |
